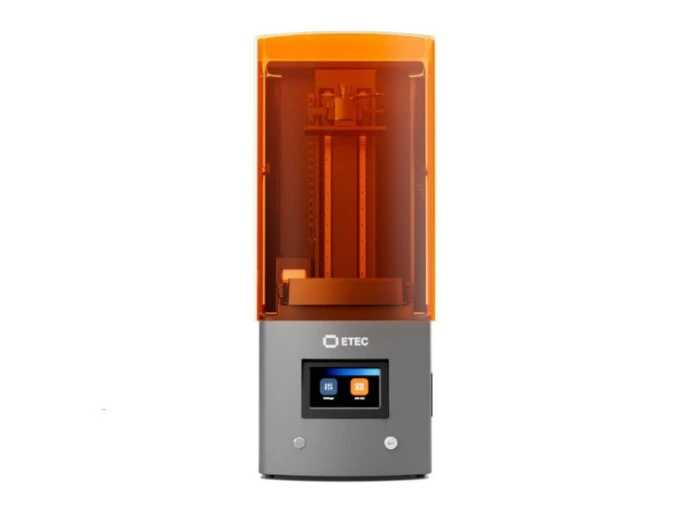

ETEC Envision One XL Dental 3D Printer
The ETEC Envision One Dental 3D Printer features patented CDLM (continuous digital light manufacturing) technology, which enables the ability for continuous printing. With little to no delay between layers, the Envision One delivers exceptional speed, print resolution, surface finish, and part properties.
ETEC Envision One XL Dental 3D Printer

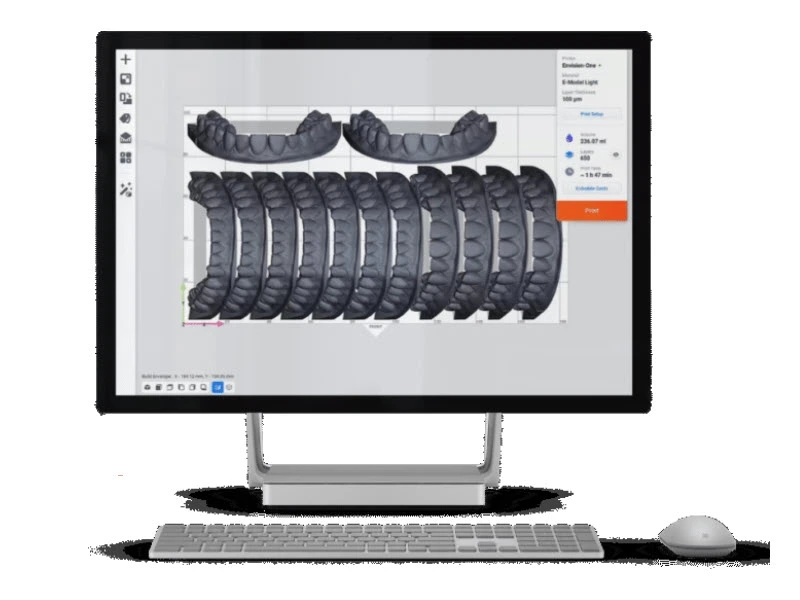

Envision One XL RP Software

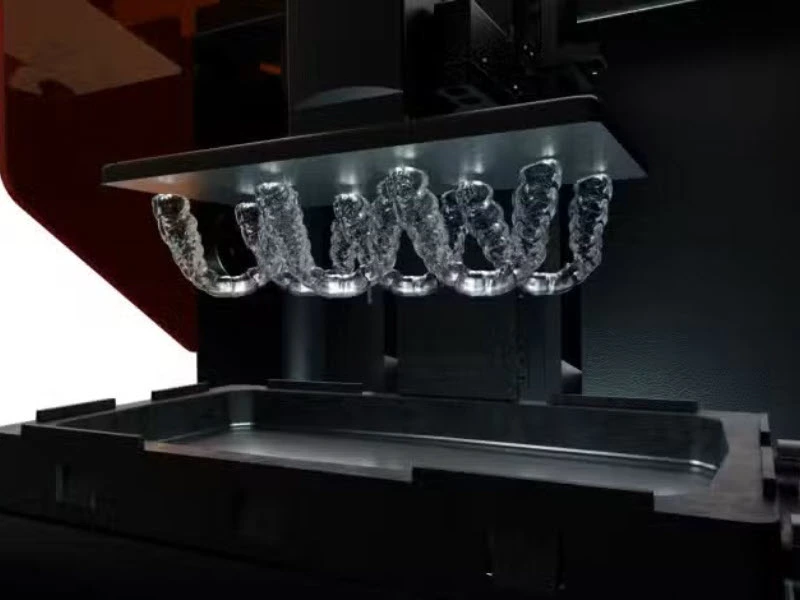

ETEC Envision One XL Premium Materials
Model materials, such as longtime favorite E-Model Light and Model Z for speed, can produce accurate full arch models quickly for the final creation of thermoformed orthodontic aligners or fitting of crowns, bridges and more.
ETEC Envision One XL 385nm LED Projection Tech

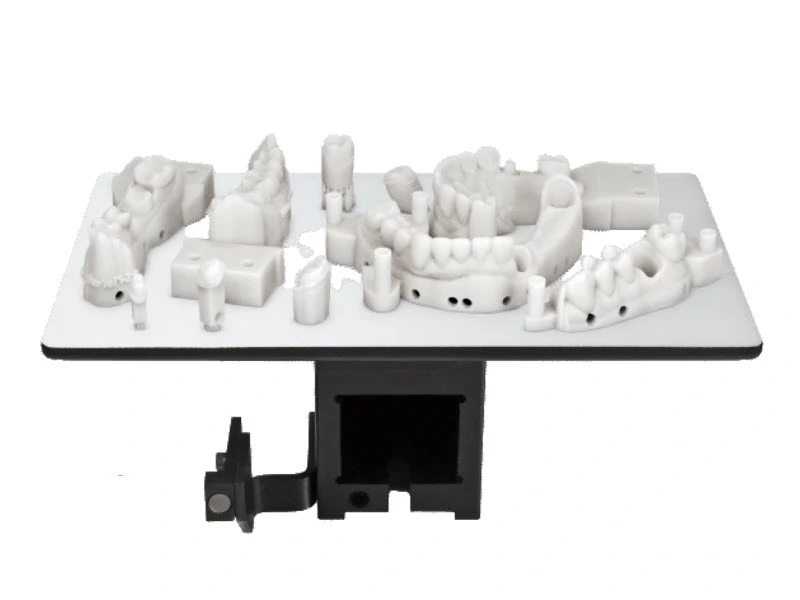

ETEC Envision One XL High Volume Production

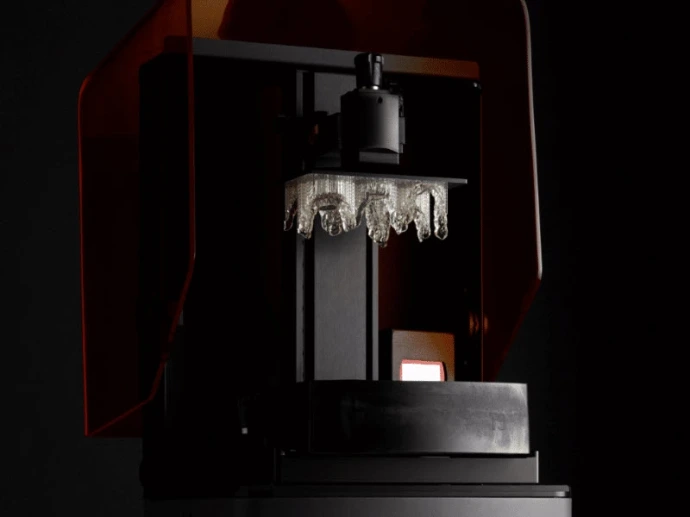

ETEC Envision One XL High Accuracy and Resolution

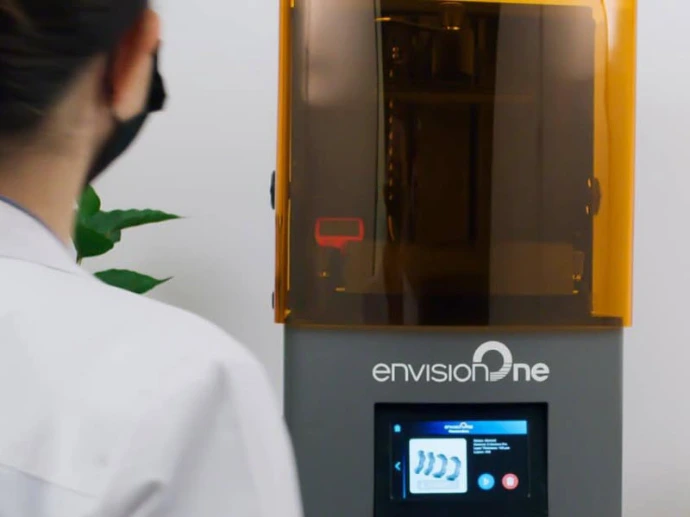

ETEC Envision One XL Best-in-Class Part Performance
Introduction Video
Details
ETEC Envision One XL Features:
- Industrial-Grade LED Light Source
- Automated Calibration and Leveling
- Seamless Exocad Software Integration
- Wide Range of Validated Dental Resins
- Integrated Oxygen-Permeable Film System
- Domeless Technology for Improved Accuracy
- Continuous Digital Light Manufacturing (cDLM) Technology
ETEC Envision One XL Technical Specs:
- Build Envelope: 7.09” x 3.98” x 13”
- Projector Resolution: 4K UHD (3840 x 2160 px)
- Layer Thickness: 25, 50, 75, 100, 150 μm
- Slides (Z-axis): Dual-linear for superior stability
- Connectivity: Wi-Fi, Ethernet Port
- Size: 15.4” x 16.93” x 25.02”
- Power: AC 110-220V, 5A
ETEC Envision One XL Materials:
- E-Tray
- E-Guide
- E-Guard
- E-Partial
- E-Model HS
- E-Orthoshape
- E-Aqua Model
- E-Model Light DLP
- E-Denstone
- Model X
- Model Z
- Press-E-Cast
- Flexcera Base
- Flexcera Smile
- SmileGuard Resin
- Flexcera Smile Ultra+
Applications

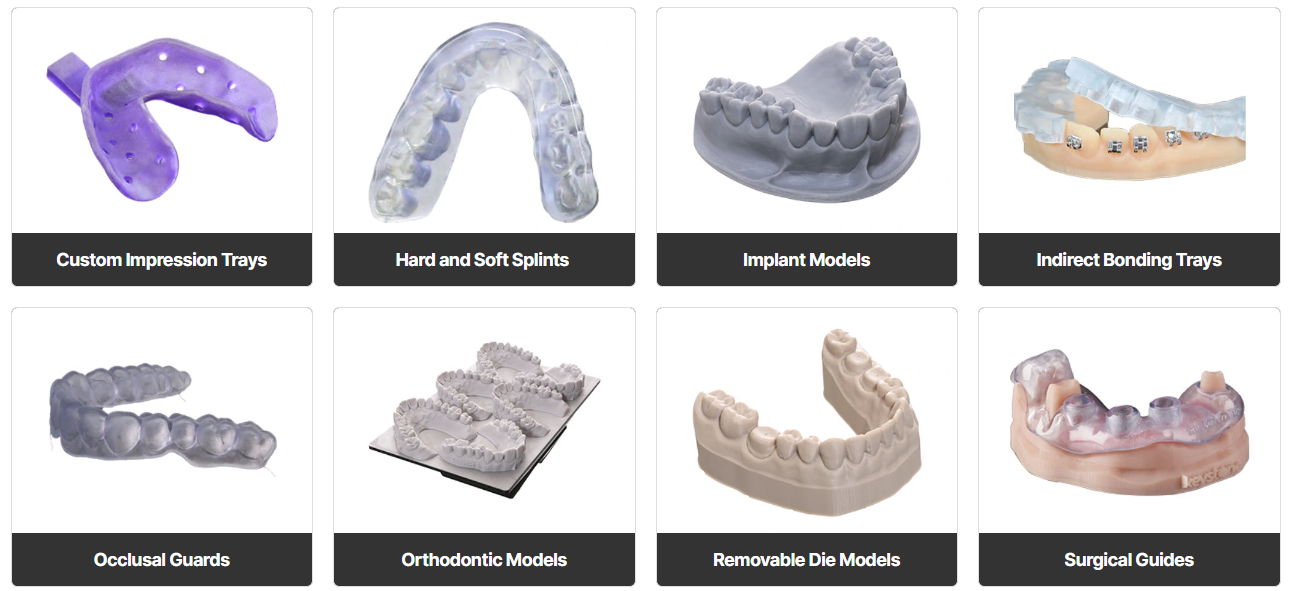

ETEC Envision One XL Applications:
- Splint
- Gingiva
- Retainers
- Night Guards
- Denture Base
- Denture Teeth
- Sports Guards
- Digital Dentures
- Restorations
- Clear Aligners
- Dental Models
- Surgical Guides
- Temporary Crown
- Aesthetic Wax-Ups
- Indirect Bonding Trays
- Flexible Partial Dentures
Brochure

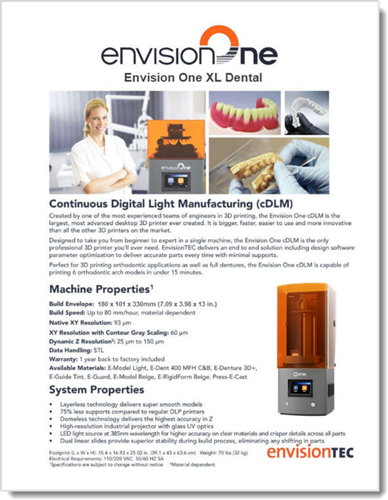

Download the ETEC Envision One XL Brochure
Inside you can learn about:
- ETEC Envision One XL Features...
- ETEC Envision One XL Specifications...
- ETEC Envision One XL Options...
- ETEC Envision One XL Capabilities....
- And a whole lot more...
Want to learn more about the ETEC Envision One XL Dental 3D Printer?
About Us
Have questions about the ETEC Envision One XL Dental 3D Printer?
We are more than a website. We are real people who have been using 3D Printer for over 25 years.
Here are some things we can help you with...
- Discuss your application to make sure it's a good fit.
- Discuss materials, part sizes, and print area.
- Send you a sample kit of prints made with the printer.
- Print samples of your parts.
- Help you choose the accessories that you need.
- Put together a special package price for your specific application.

Ask an Expert
We want to help you!
Tell us about your application and we will recommend the equipment, accessories, software, and items needed to make it work for your application. Then build a custom quote with exclusive package pricing. You will not only get the best package and price but award-winning customer support to back it up.
ETEC Envision One XL Dental 3D Printer Features

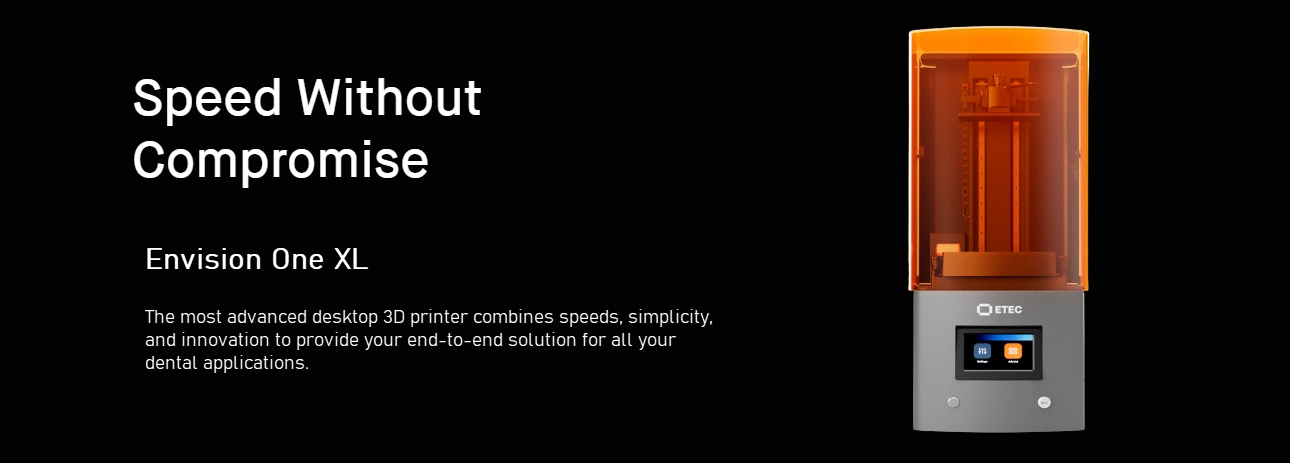

Introducing the ETEC Envision One XL
The most advanced desktop 3D printer combines speed, simplicity, and innovation to provide your end-to-end solution for all your dental applications.
Request a Virtual Product Demo
Let us show you how Envision One fits into your dental practice with a simple workflow that ensures quality parts produced with speed and accuracy.
A Comprehensive System for Intuitive Workflow
Personalize - Easily take digital impressions by using one of the 25 compatible leading dental scanners with our full Exocad integration.
Prepare - Use design software to enhance those digital impressions or simply use our one click Hyperprint automated workflow to let the software do all the work.
Print - Our printer uses advanced technology backed by more than 2 decades of development to deliver speed and performance.
Post Process - Rapidly clean and cure your 3D printed parts so you have stronger dental applications in less time.
Designed for High Volume Production
Engineered to run day and night in a production environment, the Envision One also offers remote monitoring and job starting capabilities for ease of use.
Accuracy With Minimal Supports
Proprietary design software parameter optimization delivers accurate parts every time with minimal supports.

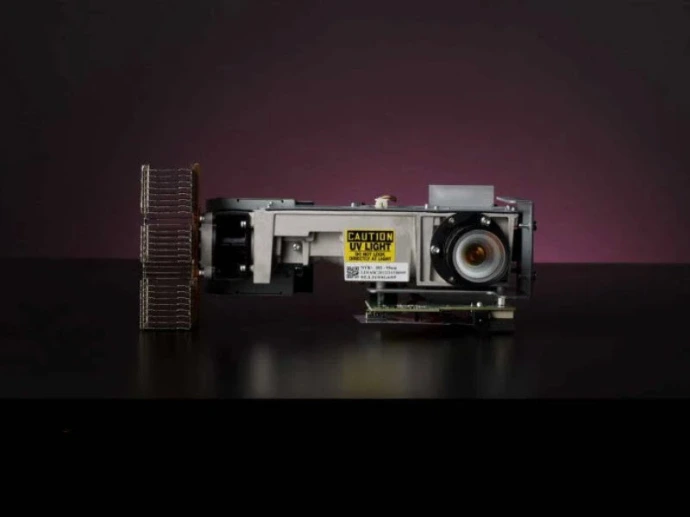

385nm LED Projection Tech that Delivers Speed & Strength
Our custom projector used in Envision One delivers high-intensity light uniformly across the entire build surface. Developed specifically for 3D printing, each projector’s output is checked at key points across the build surface for accuracy measured down to the individual pixel. It’s the only way to ensure a perfect, accurate print. Every single time.
Premium grade, FDA-cleared Rapidly Growing Dental Portfolio
Now Offering Open Certified 3D Print Materials
Desktop Health's large library of FDA-cleared biocompatible resins and precise model materials represent outstanding value and quality for every clinical application.
Save Time. Just Hyperprint
Do more with our 1 click design and rapid prototyping software made to maximize output and efficiency.
Complete Clean and Cure Solution
Streamline and automate post-processing with the wash and cure products that complete your 3D printing system.
Your Simple & Complete Digital Dentistry Workflow
Bring high-quality 3D printing to your dental lab today - order the complete package of all the tools you need for seamless integration.
High-Speed Continuous Printing
The cDLM process allows for continuous printing without the need to peel each layer off the film after it is polymerized.
A ‘dead zone’ is formed by flowing a thin layer of oxygen above the film of the printing bed. Within this ‘dead zone’ the polymerization process is inhibited ensuring the layer being printed adheres to the layer above and not the printing bed film. This ‘dead zone’ is what enables continuous printing, where the build plate can continually move in the Z axis, leading to faster, more reliable prints.
Best-In-Class Part Performance
The Envision One cDLM produces end-use parts with properties that meet or exceed that of traditionally manufactured plastic components, such as injection molded plastics
Unlike most plastic additive manufacturing methods, parts created via CDLM are made up of entangled long-chain polymers, making them fully isotropic. This is vastly different from processes like FDM, which create anisotropic parts with few, if any, polymer chains between each layer. To create those long-chain polymers, printers must be able to process highly viscous resins which require large amounts of power to polymerize. Their high viscosity means these resins cannot be jetted (PolyJet), and would take too long to process with vector based polymerization methods (SLA).
High-Resolution Printing
The Envision One cDLM delivers best in class part resolution and accuracy to print incredibly crisp features and hold tightest tolerances.
DLP is known for having incredibly high resolution parts and the EnvisionONE CDLM takes accuracy to new heights.
By using industrial DLP chips, verus cheaper consumer grade chips, and a custom designed optical train enable high contrast and minimal distortion for the projected picture resulting in accuracy down to the micron level. The cDLM domeless printing process eliminates the “dome” effect to deliver incredible Z accuracy.
Easy to Use Software
The brains of the Envision One cDLM is EnvisionONE RP which streamlines the entire fabrication process, ensuring optimal part orientations, print settings, and printer productivity.
Intuitive, easy-to-use Envision One RP software automates support generation and part orientation, while an integrated file repair tool patches meshes and readies the parts for print. Cloud software allows users to remotely manage the system, send jobs to multiple printers and monitor job progress, while over-the-air software and firmware updates ensure users have access to the most up-to-date tools and processes.
ETEC Envision One XL Dental 3D Printer Specifications
| Model | ENVISION ONE XL |
| Build Volume (X, Y, Z) | 180 x 101 x 330 mm |
| Device Dimensions | Approx. 406 × 406 × 1,118 mm |
| Weight | 52kg |
| Input frequency | 50 Hz |
| Type of input current: | AC |
| Technology | Continuous Digital Light Manufacturing (cDLM) / DLP |
| Native XY Resolution | 93 μm |
| Enhanced XY Resolution | up to approx. 60 μm |
| Layer Thickness | Approx. 25 – 150 μm (depending on material) |
| Print Speed | Up to approx. 45 mm/h |
| Power Supply | 110/220 V, 50/60 Hz, 5 A |
| Layer Thickness | Approx. 25 – 150 μm (depending on material) |
